AB-3 Developer Guide


Acknowledgements

{ list here sources of all reused/adapted ideas, code, documentation, and third-party libraries -- include links to the original source as well }


Setting up, getting started

Refer to the guide Setting up and getting started.


Design

Architecture

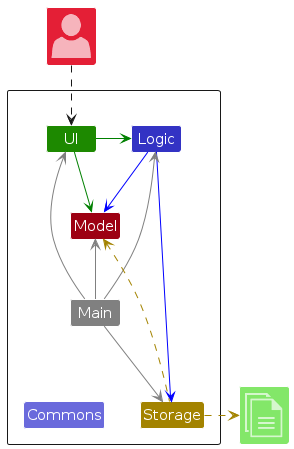

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

  • At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
  • At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app's work is done by the following four components:

  • UI: The UI of the App.
  • Logic: The command executor.
  • Model: Holds the data of the App in memory.
  • Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

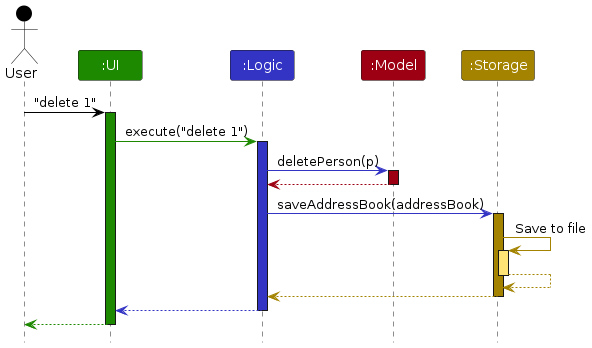

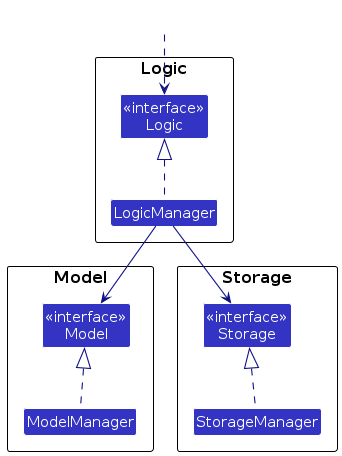

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

Each of the four main components (also shown in the diagram above),

  • defines its API in an interface with the same name as the Component.
  • implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component's being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

Structure of the UI Component

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

  • executes user commands using the Logic component.
  • listens for changes to Model data so that the UI can be updated with the modified data.
  • keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
  • depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

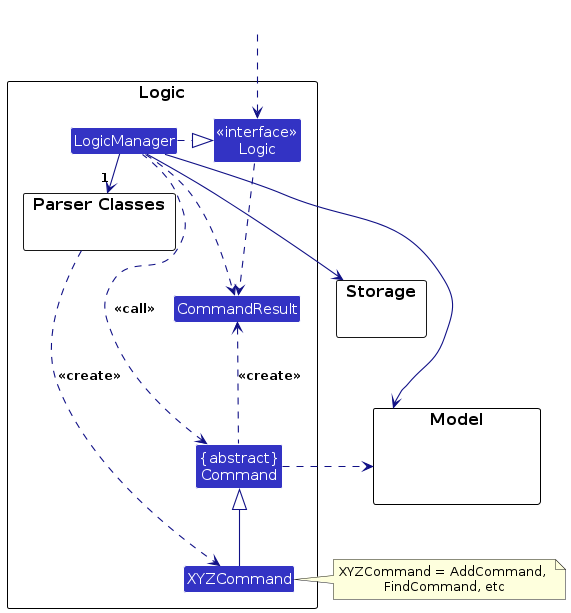

Here's a (partial) class diagram of the Logic component:

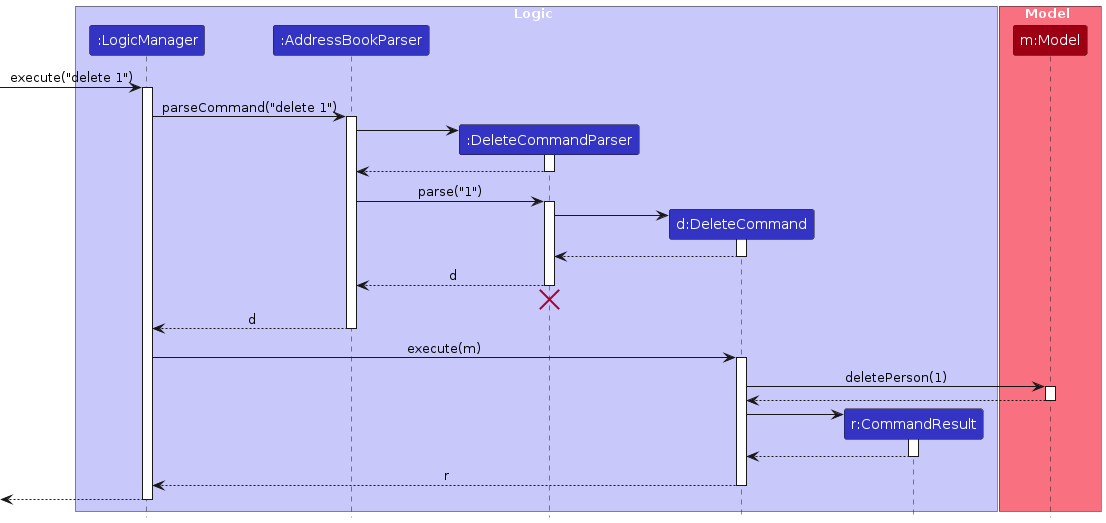

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

Interactions Inside the Logic Component for the `delete 1` Command

Note: The lifeline for DeleteCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline continues till the end of diagram.

How the Logic component works:

  1. When Logic is called upon to execute a command, it is passed to an AddressBookParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
  2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
  3. The command can communicate with the Model when it is executed (e.g. to delete a person).
    Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
  4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

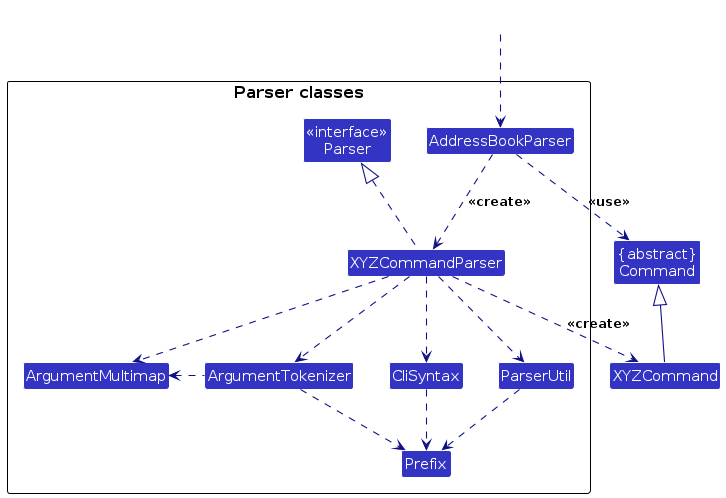

How the parsing works:

  • When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.
  • All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, ...) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

The Model component,

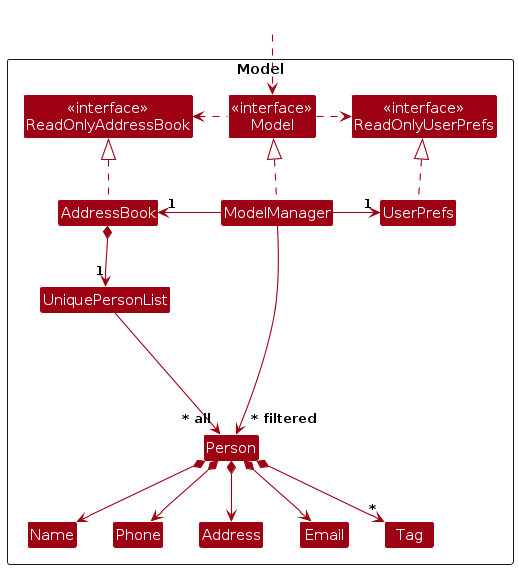

  • stores the address book data i.e., all Person objects (which are contained in a UniquePersonList object).
  • stores the currently 'selected' Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be 'observed' e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
  • stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
  • does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

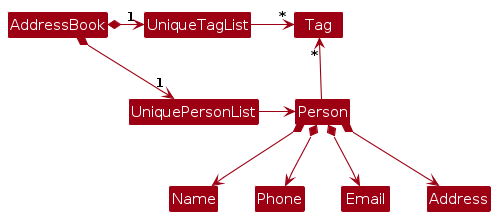

Note: An alternative (arguably, a more OOP) model is given below. It has a Tag list in the AddressBook, which Person references. This allows AddressBook to only require one Tag object per unique tag, instead of each Person needing their own Tag objects.

Storage component

API : Storage.java

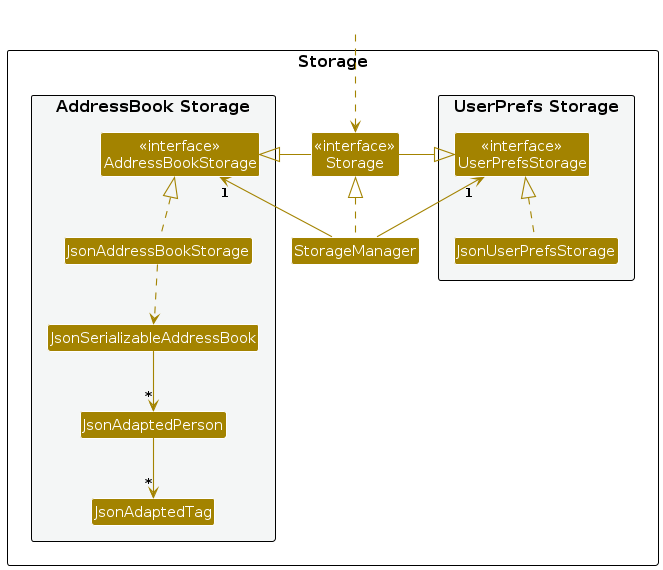

The Storage component,

  • can save both address book data and user preference data in JSON format, and read them back into corresponding objects.
  • inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
  • depends on some classes in the Model component (because the Storage component's job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.address.commons package.


Implementation

This section describes some noteworthy details on how certain features are implemented.

[Proposed] Undo/redo feature

Proposed Implementation

The proposed undo/redo mechanism is facilitated by VersionedAddressBook. It extends AddressBook with an undo/redo history, stored internally as an addressBookStateList and currentStatePointer. Additionally, it implements the following operations:

  • VersionedAddressBook#commit() — Saves the current address book state in its history.
  • VersionedAddressBook#undo() — Restores the previous address book state from its history.
  • VersionedAddressBook#redo() — Restores a previously undone address book state from its history.

These operations are exposed in the Model interface as Model#commitAddressBook(), Model#undoAddressBook() and Model#redoAddressBook() respectively.

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

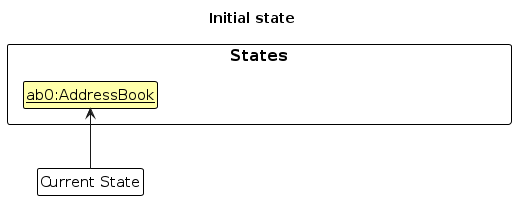

Step 1. The user launches the application for the first time. The VersionedAddressBook will be initialized with the initial address book state, and the currentStatePointer pointing to that single address book state.

UndoRedoState0

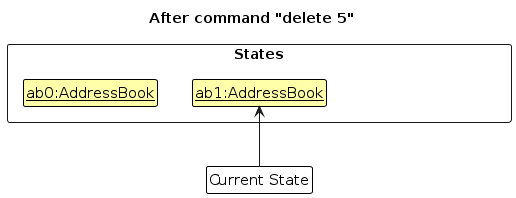

Step 2. The user executes delete 5 command to delete the 5th person in the address book. The delete command calls Model#commitAddressBook(), causing the modified state of the address book after the delete 5 command executes to be saved in the addressBookStateList, and the currentStatePointer is shifted to the newly inserted address book state.

UndoRedoState1

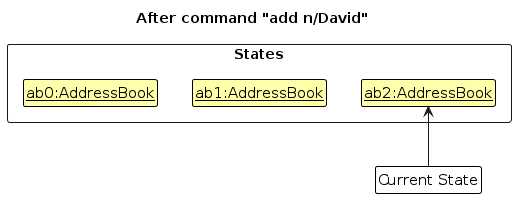

Step 3. The user executes add n/David …​ to add a new person. The add command also calls Model#commitAddressBook(), causing another modified address book state to be saved into the addressBookStateList.

UndoRedoState2

Note: If a command fails its execution, it will not call Model#commitAddressBook(), so the address book state will not be saved into the addressBookStateList.

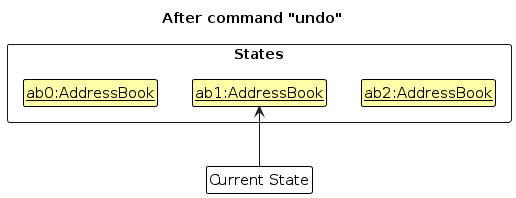

Step 4. The user now decides that adding the person was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undoAddressBook(), which will shift the currentStatePointer once to the left, pointing it to the previous address book state, and restores the address book to that state.

UndoRedoState3

Note: If the currentStatePointer is at index 0, pointing to the initial AddressBook state, then there are no previous AddressBook states to restore. The undo command uses Model#canUndoAddressBook() to check if this is the case. If so, it will return an error to the user rather than attempting to perform the undo.

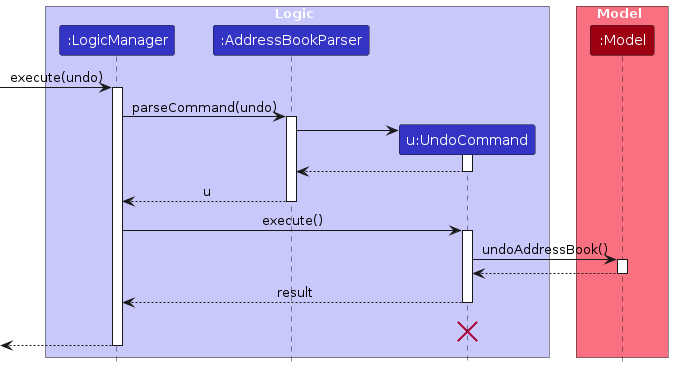

The following sequence diagram shows how an undo operation goes through the Logic component:

UndoSequenceDiagram-Logic

Note: The lifeline for UndoCommand should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

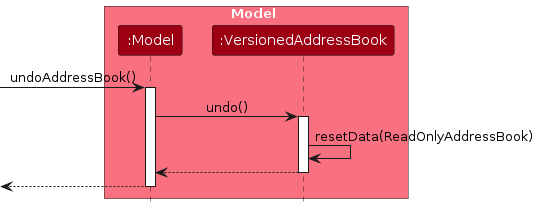

Similarly, how an undo operation goes through the Model component is shown below:

UndoSequenceDiagram-Model

The redo command does the opposite — it calls Model#redoAddressBook(), which shifts the currentStatePointer once to the right, pointing to the previously undone state, and restores the address book to that state.

Note: If the currentStatePointer is at index addressBookStateList.size() - 1, pointing to the latest address book state, then there are no undone AddressBook states to restore. The redo command uses Model#canRedoAddressBook() to check if this is the case. If so, it will return an error to the user rather than attempting to perform the redo.

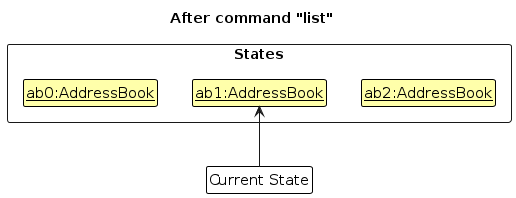

Step 5. The user then decides to execute the command list. Commands that do not modify the address book, such as list, will usually not call Model#commitAddressBook(), Model#undoAddressBook() or Model#redoAddressBook(). Thus, the addressBookStateList remains unchanged.

UndoRedoState4

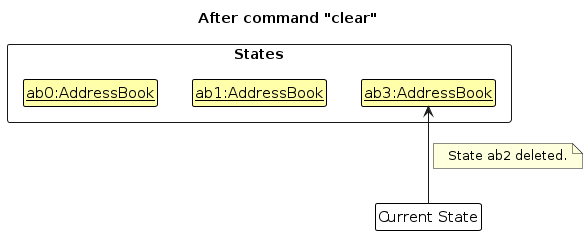

Step 6. The user executes clear, which calls Model#commitAddressBook(). Since the currentStatePointer is not pointing at the end of the addressBookStateList, all address book states after the currentStatePointer will be purged. Reason: It no longer makes sense to redo the add n/David …​ command. This is the behavior that most modern desktop applications follow.

UndoRedoState5

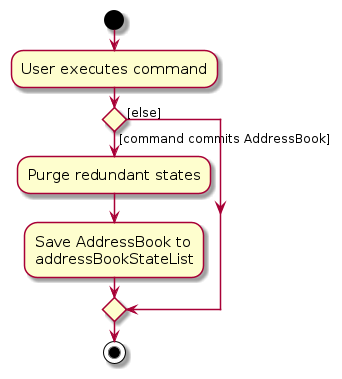

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

Aspect: How undo & redo executes:

  • Alternative 1 (current choice): Saves the entire address book.

    • Pros: Easy to implement.
    • Cons: May have performance issues in terms of memory usage.
  • Alternative 2: Individual command knows how to undo/redo by itself.

    • Pros: Will use less memory (e.g. for delete, just save the person being deleted).
    • Cons: We must ensure that the implementation of each individual command are correct.

{more aspects and alternatives to be added}

[Proposed] Data archiving

{Explain here how the data archiving feature will be implemented}


Documentation, logging, testing, configuration, dev-ops


Appendix: Requirements

Product scope

Target user profile: School coaches that coach relay teams in different schools. They:

  • have a need to manage a significant number of athletes and teams
  • prefer desktop apps over other types
  • can type fast
  • prefer typing to mouse interactions
  • are reasonably comfortable using CLI apps

Value proposition: Given that coaches generally have many athletes to keep track of, our product aims to help coaches manage athletes and teams from different schools faster than a typical mouse/GUI driven app

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority As a …​ I want to …​ So that I can…​
* * * new user see usage instructions refer to instructions when I forget how to use the App
* * * user add a new athlete
* * * user delete a athlete remove entries that I no longer need
* * * user find a person by name locate details of persons without having to go through the entire list
* * user with lots of athletes to keep track of find athletes by school, role or tag locate details of athletes that I wish to find via these means
* * user managing multiple teams group athletes by their teams keep track of who is in which team
* * user find a team by name locate details of teams without having to go through the entire list
* user with multiple teams' training to keep track of add a team's training sessions keep track of team's training sessions
* * user delete a team remove teams that I no longer need
* user with many persons in the address book sort persons by name locate a person easily
* user needing to keep track of athletes' progress record attendance for athletes monitor his / her progress in training
* user add a new session record down all sessions date time and location
* user assign athletes to a session track down which athlete is supposed to attend a particular session
* user list down all upcoming sessions keep track of which sessions are upcoming and who is attending
* user delete a session remove unwanted sessions

{More to be added}

Use cases

(For all use cases below, the System is the RelayCoach and the Actor is the Coach, unless specified otherwise)

Use case: Add Athlete (Basic Info)

MSS

1. Coach chooses to add a new athlete.
2. RelayCoach requests the athlete’s basic details.
3. Coach provides the requested details.
4. RelayCoach validates the details.
5. RelayCoach saves the athlete’s record.
6. RelayCoach confirms the addition and displays the stored information.
Use case ends.

Extensions

3a. RelayCoach detects missing or invalid details.
    3a1. RelayCoach requests correction of details.
    3a2. Coach updates information.
    Use case resumes from Step 4.

Use case: Add Athlete (Additional Info)

MSS

1. Coach selects an athlete from the list.
2. RelayCoach requests additional information (Role, Tags, Height, Weight).
3. Coach provides the information.
4. RelayCoach validates the information.
5. RelayCoach updates the athlete’s record.
6. RelayCoach confirms the update and displays the new information.
Use case ends.

Extensions

2a. Athlete Index not found.
    2a1. RelayCoach displays an error message.
    Use case ends.

4a. Invalid data.
    4a1. RelayCoach requests correction of information.
    Use case resumes from Step 3.

Use case: List Athletes

MSS

1. Coach requests to view all athletes.
2. RelayCoach retrieves all stored athletes.
3. RelayCoach displays the list with details (Name, School, Role, Tags, etc.).
Use case ends.

Extensions

2a. No athletes found.
    2a1. RelayCoach informs the coach that no athletes are stored.
    Use case ends.

Use case: Find Athletes by Filter

MSS

1. Coach chooses to find athletes by specifying one or more filters (Name, School, Role, Tag).
2. RelayCoach validates the filter input.
3. RelayCoach searches the database.
4. RelayCoach displays the matching athletes with details.
Use case ends.

Extensions

2a. Filter missing or invalid.
    2a1. RelayCoach prompts for correction.
    Use case ends.

3a. No athletes found.
    3a1. RelayCoach informs the coach that no matching athletes were found.
    Use case ends.

Use case: Delete Athlete

MSS

1. Coach selects an athlete to delete.
2. RelayCoach verifies the selection.
3. RelayCoach removes the athlete’s record.
4. RelayCoach confirms the deletion.
Use case ends.

Extensions

2a. Selection invalid (e.g., index out of bounds).
    2a1. RelayCoach prompts for correction.
    Use case ends.

Use case: Group Athletes by Teams

MSS

1. Coach chooses to form a new relay team.
2. RelayCoach requests the team name and athlete indexes.
3. Coach provides the team name and 4 valid athlete indexes.
4. RelayCoach validates the details.
5. RelayCoach creates the new team with the specified athletes.
6. RelayCoach confirms the team creation and displays the team details.
Use case ends.

Extensions

3a. Missing or invalid details provided.
    3a1. RelayCoach requests correction of team name or indexes.
    3a2. Coach updates information.
    Use case resumes from Step 4.

4a. Fewer/more than 4 indexes provided.
    4a1. RelayCoach rejects team creation and informs coach.
    Use case ends.

4b. Invalid athlete index provided.
    4b1. RelayCoach notifies coach that the index does not match any athlete.
    Use case ends.

4c. Duplicate athlete index detected.
    4c1. RelayCoach rejects team creation due to duplicate members.
    Use case ends.

4d. Athlete already belongs to another team.
    4d1. RelayCoach informs coach that the athlete is already in <existing_team>.
    Use case ends.

4e. No athletes exist in the database.
    4e1. RelayCoach prompts coach to add athletes first.
    Use case ends.

Use case: View Team Information

MSS

1. Coach chooses to view teams.
2. RelayCoach requests an optional team name filter.
3. Coach provides either no team name or a specific team name.
4. RelayCoach retrieves the relevant team(s) and displays details.
5. Use case ends.

Extensions

3a. Invalid team name provided (non-alphabet characters).
    3a1. RelayCoach notifies coach of invalid team name.
    Use case ends.

4a. No teams exist in the database.
    4a1. RelayCoach informs coach: “No teams found!”.
    Use case ends.

4b. No teams match the provided team name.
    4b1. RelayCoach informs coach: “No teams found!”.
    Use case ends.

Use case: Add Session to Team

MSS

1. Coach chooses to add a training session for a team.
2. RelayCoach requests the team index, session date/time, and location.
3. Coach provides the requested details.
4. RelayCoach validates the input.
5. RelayCoach adds the session to the specified team.
6. RelayCoach confirms the addition and displays the updated team schedule.
Use case ends.

Extensions

3a. Missing team index.
    3a1. RelayCoach notifies coach of missing team index.
    Use case ends.

3b. Invalid date/time format provided.
    3b1. RelayCoach requests correction using required format yyyy-MM-dd HHmm.
    Use case ends.

3c. Missing location.
    3c1. RelayCoach notifies coach that location must be provided.
    Use case ends.

4a. Invalid team index.
    4a1. RelayCoach informs coach the team does not exist.
    Use case ends.

4b. Duplicate session detected (same team, same date/time).
    4b1. RelayCoach rejects scheduling and notifies coach.
    Use case ends.

Use case: Delete Team

MSS

1. Coach chooses to delete a team.
2. RelayCoach requests the team index.
3. Coach provides the team index.
4. RelayCoach validates the team index.
5. RelayCoach deletes the team from the database.
6. RelayCoach confirms deletion with a success message.
Use case ends.

Extensions

2a. Selection invalid (e.g., index out of bounds).
    2a1. RelayCoach prompts for correction.
    Use case ends.

Use case: Add Students to Session

MSS

1. Coach chooses to add students to a session.
2. RelayCoach requests session datetime, location, and student indexes.
3. Coach provides the requested details.
4. RelayCoach validates the input.
5. RelayCoach adds the students to the specified session.
6. RelayCoach confirms the addition and displays updated session details.
Use case ends.

Extensions

3a. Missing student index.
    3a1. RelayCoach notifies coach that at least one student index must be provided.
    Use case ends.

3b. Invalid date/time format.
    3b1. RelayCoach requests correction using required format yyyy-MM-dd HHmm.
    Use case ends.

3c. Missing location.
    3c1. RelayCoach notifies coach that location is required.
    Use case ends.

4a. Invalid student index provided.
    4a1. RelayCoach informs coach that the student does not exist.
    Use case ends.

Non-Functional Requirements

  1. Should work on any mainstream OS as long as it has Java 17 or above installed.
  2. Should be able to hold up to 1000 persons without a noticeable sluggishness in performance for typical usage.
  3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
  4. The command interface should allow coaches to perform common tasks while standing or in outdoor environments without requiring precise mouse movements.
  5. The application should efficiently handle peak usage during competition seasons when coaches need to manage multiple teams and training sessions simultaneously.
  6. New athlete attributes or team management features should be easily addable without major architectural changes.
  7. The system should provide clear, actionable error messages when coaches input invalid team compositions or conflicting athlete assignments.
  8. The system should validate critical data formats (dates, indexes, required fields) before executing commands.
  9. The application should be able to run on standard laptops commonly used by coaches without requiring high-end hardware.
  10. A coach should be able to learn the basic commands (add, list, delete) within 30 minutes of use.
  11. Command syntax should follow consistent patterns across all features (e.g., n/ for name, index/ for indexes).

{More to be added}

Glossary

  • Mainstream OS: Windows, Linux, Unix, MacOS
  • standard laptops: laptops that run on Mid-range CPU(Intel Core i5 or AMD Ryzen 5) with maximum of 8GB Ram
  • CLI: Command-Line Interface
  • GUI: Graphical User Interface
  • MSS: Main Success Scenario
  • Athletes: Secondary school relay race Athletes
  • teams: Teams are used to group Athletes. Each team only have 4 Athletes.
  • sessions: Sessions are used to track a Team's training time and location.

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Note: These instructions only provide a starting point for testers to work on; testers are expected to do more exploratory testing.

Launch and shutdown

  1. Initial launch

    1. Download the jar file and copy into an empty folder

    2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

  2. Saving window preferences

    1. Resize the window to an optimum size. Move the window to a different location. Close the window.

    2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

  3. { more test cases …​ }

Deleting a person

  1. Deleting a person while all persons are being shown

    1. Prerequisites: List all persons using the list command. Multiple persons in the list.

    2. Test case: delete 1
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the status message. Timestamp in the status bar is updated.

    3. Test case: delete 0
      Expected: No person is deleted. Error details shown in the status message. Status bar remains the same.

    4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

  2. { more test cases …​ }

Saving data

  1. Dealing with missing/corrupted data files

    1. {explain how to simulate a missing/corrupted file, and the expected behavior}
  2. { more test cases …​ }
